Name: Louver Glass
Brand: SHANDONG LANJING GLASS TECHNOLOGY CO., LTD.

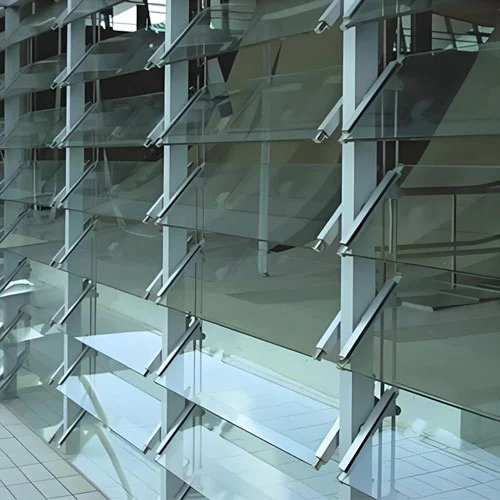

Louver Glass

Lanjing is equipped with advanced machinery to grind small-sized glasses for louver applications. The louver glass panels can be clear, tinted, reflective, or Low-E, depending on customer needs. Louver glass panels typically come in 5mm or 6mm thickness, with widths of approximately 40mm, 50mm, or 60mm. The length of the glass louver panel is usually finished with polished edges, while the width can undergo standard grinding, ensuring the quality that leading specialty glass suppliers are known for. We offer a wide range of glass louvers for sale, tailored to meet both functional and aesthetic requirements.

FTO Fluorine-doped Tin Oxide Coated Glass Descriptions

FTO is an n-type semiconductor material; therefore, it has extremely high conductivity, reaching over 10 ^ 4 S/cm

Lanjing supplies different thicknesses of FTO-coated glass with different resistances.

Item No.	TEK10	TEK15	TEK35	TEK70	TEK250
Thickness	4mm 3.2mm	4mm 3.2mm	4mm 3.2mm	4mm 3.2mm	4mm 3.2mm
Visible Light Transmittance	≥82%	＞83%	≥83%	＞83%	＞83%
Coating film Reflectance	≤11%	＜12%	＜12%	＜12%	＜12%
Haze of film	≤1.7%	≤1%	＜1%	≤1%	≤1%
Resistance(before glass tempered	8.0-9.5Ω	12-14Ω	34-38Ω	60-68Ω	260-320Ω
Resistance(after glass tempered)	9.0-10Ω	12-14Ω	38-40Ω	64-72Ω	252-300Ω
Radiance	＜0.13	＜0.15	＜0.35	＜0.45	＜0.6

FTO Glass Dimension Information:

Stock sheet panel can be various, 2140x3300mm, 2250x3210mm, 1830x2440mm, 1830x2200mm, and any other customized.

Processed size: FTO-coated glass can be tempered, the size following the client's cutting list.

Descriptions of FTO Conductive Glass

FTO-Coated Glass Features

Transparency

FTO glasss—also known as fluorine doped tin oxide glass and fluorine doped tin oxide coated glass—has excellent optical transparency, especially in the visible and near ultraviolet light regions, which is crucial for photovoltaic and optoelectronic display applications of fto conductive glass.

Conductivity

FTO glass has high electrical conductivity, which makes it widely used in electronic devices and circuits.

Stability

FTO glass has good chemical and thermal stability, which allows fto conductive glass—a key type of fluorine doped tin oxide coated glass—to maintain its properties under various environmental conditions.

Easy to obtain

The production process of FTO glass is relatively simple, and the cost is low, which makes fto coated glass suitable for large-scale commercial applications.

FTO-Coated Glass Application

FTO coated glass is widely used in：

photovoltaic devices, such as solar cells, dye-sensitized solar cells, organic photovoltaic cells, and thin-film solar cells.

FTO Glas Application

Optoelectronic Display Devices (such as liquid crystal displays).

In the Field of Touch Screens

FTO conductive glass can serve as a conductive layer for touch screens, utilizing its excellent conductivity and transparency to provide a high-quality touch experience

Used for Automobiles

Front windshield and side window glass made of fto conductive glass, by changing the thickness and resistance of FTO glass, automatic adjustment of indoor lighting can be achieved.

Home Appliances

FTO conductive glass is made into insulated glass used for refrigerator doors, oven doors, and the display cabinet.

FTO Glas Application

FTO Conductive Glass Production Capability

FTO-Coated GLASS
Thickness	2.1mm 3.2mm 4mm 5mm 6mm 8mm
Glass Standard	EN12150, ANSI2208,ASTM C1048,GBT15763.4,GBT15763.2GBT17841, 5 years warranty
Glass Type	TEK7, TEK10, TEK15, TEK17, TEK35, TEK70,TEK250 And customized.
Glass Size	2140x3300mm, 2250x3210mm ,1830x2440mm, 1830x2200mm
Monthly Output	500,000SQM
