FTO fluorine-doped tin oxide coated glass is a transparent conductive glass composed of a special glass substrate and a layer of FTO (Fluorine-doped Tin Oxide) film. FTO film is a wide bandgap semiconductor material composed of tin oxide (SnO2) and fluorine (F). The doping of the fluorine element can significantly improve the conductivity of tin oxide. For applications requiring high transparency and conductivity, fluorine doped tin oxide glass is an excellent choice. Whether you need fluorine doped tin oxide coated glass for solar cells, touch screens, or other electronic devices, this material offers superior performance and reliability that defines fto coated glass as a top-tier transparent conductive solution.
FTO is an n-type semiconductor material; therefore, it has extremely high conductivity, reaching over 10 ^ 4 S/cm
Lanjing supplies different thicknesses of FTO-coated glass with different resistances.
| Item No. | TEK10 | TEK15 | TEK35 | TEK70 | TEK250 |
| Thickness | 4mm 3.2mm | 4mm 3.2mm | 4mm 3.2mm | 4mm 3.2mm | 4mm 3.2mm |
| Visible Light Transmittance | ≥82% | ＞83% | ≥83% | ＞83% | ＞83% |
| Coating film Reflectance | ≤11% | ＜12% | ＜12% | ＜12% | ＜12% |
| Haze of film | ≤1.7% | ≤1% | ＜1% | ≤1% | ≤1% |
| Resistance(before glass tempered | 8.0-9.5Ω | 12-14Ω | 34-38Ω | 60-68Ω | 260-320Ω |
| Resistance(after glass tempered) | 9.0-10Ω | 12-14Ω | 38-40Ω | 64-72Ω | 252-300Ω |
| Radiance | ＜0.13 | ＜0.15 | ＜0.35 | ＜0.45 | ＜0.6 |
FTO Glass Dimension Information:
Stock sheet panel can be various, 2140x3300mm, 2250x3210mm, 1830x2440mm, 1830x2200mm, and any other customized.
Processed size: FTO-coated glass can be tempered, the size following the client's cutting list.
Transparency
FTO glasss—also known as fluorine doped tin oxide glass and fluorine doped tin oxide coated glass—has excellent optical transparency, especially in the visible and near ultraviolet light regions, which is crucial for photovoltaic and optoelectronic display applications of fto conductive glass.
Conductivity
FTO glass has high electrical conductivity, which makes it widely used in electronic devices and circuits.
Stability
FTO glass has good chemical and thermal stability, which allows fto conductive glass—a key type of fluorine doped tin oxide coated glass—to maintain its properties under various environmental conditions.
Easy to obtain
The production process of FTO glass is relatively simple, and the cost is low, which makes fto coated glass suitable for large-scale commercial applications.
FTO coated glass is widely used in：

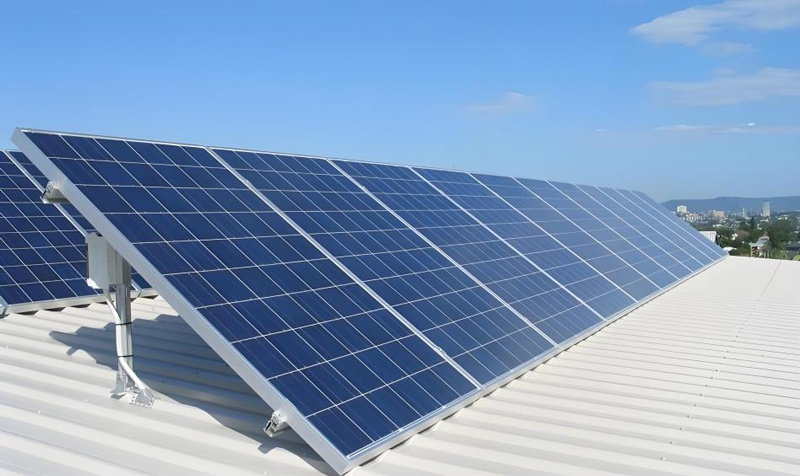

photovoltaic devices, such as solar cells, dye-sensitized solar cells, organic photovoltaic cells, and thin-film solar cells.
Optoelectronic Display Devices (such as liquid crystal displays).
In the Field of Touch Screens
FTO conductive glass can serve as a conductive layer for touch screens, utilizing its excellent conductivity and transparency to provide a high-quality touch experience
Used for Automobiles
Front windshield and side window glass made of fto conductive glass, by changing the thickness and resistance of FTO glass, automatic adjustment of indoor lighting can be achieved.
Home Appliances

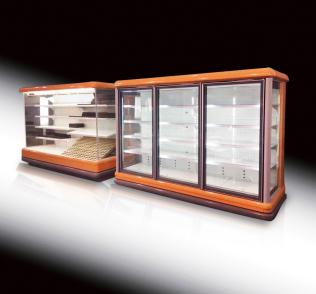

FTO conductive glass is made into insulated glass used for refrigerator doors, oven doors, and the display cabinet.
| FTO-Coated GLASS | |
| Thickness | 2.1mm 3.2mm 4mm 5mm 6mm 8mm |
| Glass Standard | EN12150, ANSI2208,ASTM C1048,GBT15763.4,GBT15763.2GBT17841, 5 years warranty |
| Glass Type | TEK7, TEK10, TEK15, TEK17, TEK35, TEK70,TEK250 And customized. |
| Glass Size | 2140x3300mm, 2250x3210mm ,1830x2440mm, 1830x2200mm |
| Monthly Output | 500,000SQM |
Pls leave a message if you have any inquiries or questions, thank you.
